True/False
Indicate whether the
statement is true or false.
|
|
|
1.
|
As more resistors are added to a series circuit,
the total resistance of the circuit increases
|
|
|
2.
|
Circuit breakers and fuses work like a
switch
|
|
|
3.
|

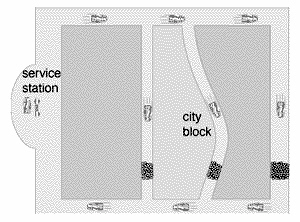

The picture of the race track is like a parallel
circuit. The service station is like the power supply in a circuit. A parallel circuit has more than
one possible route from the power supply, through the various circuit components, back to the power
supply.
|
|
|
4.
|
An ammeter is a device used to measure the power of an electrical device.
|
|
|
5.
|

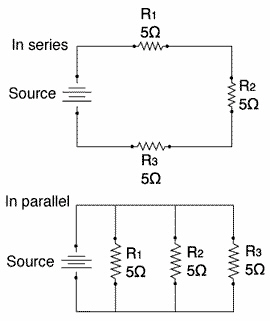

Consider two electrical circuits, represented in
the circuit diagrams. Both circuits consist of three 5 W resistors. In one
circuit, the resistors are connected in series. In the second circuit, the resistors are connected in
parallel. Both circuits are connected to identical power supplies. In this situation, the series
circuit would have the lower equivalent resistance.
|
